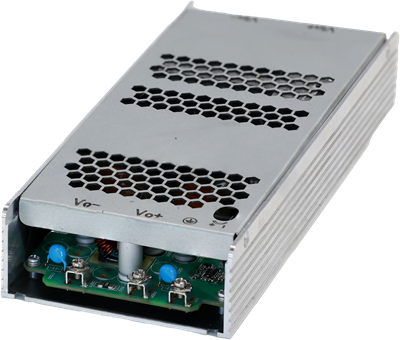

300V-1500V wide range high voltage input DC/DC power supply module
360W convection cooled rated power
12V - 48V output voltage options for various application
Certificate for solar and ESS system
| Input Voltage Range |
300VDC - 1500VDC |
| Output Voltage |
24V, 48V Options |
| Rated power |
360W |
| Protections |
Input Under Voltage, Output Over Current, Output Over Voltage, Output Short Circuit, Output Over Power, Over Temperature. |
| Dielectric Voltage |
Primary to Secondary: 4kVAC |
| EMC |
CLASS B conducted and radiated EMI |
| Safety |
IEC62109-1, IEC62477-1, UL1741 contact sales@cheeryenergy.com for detail |
