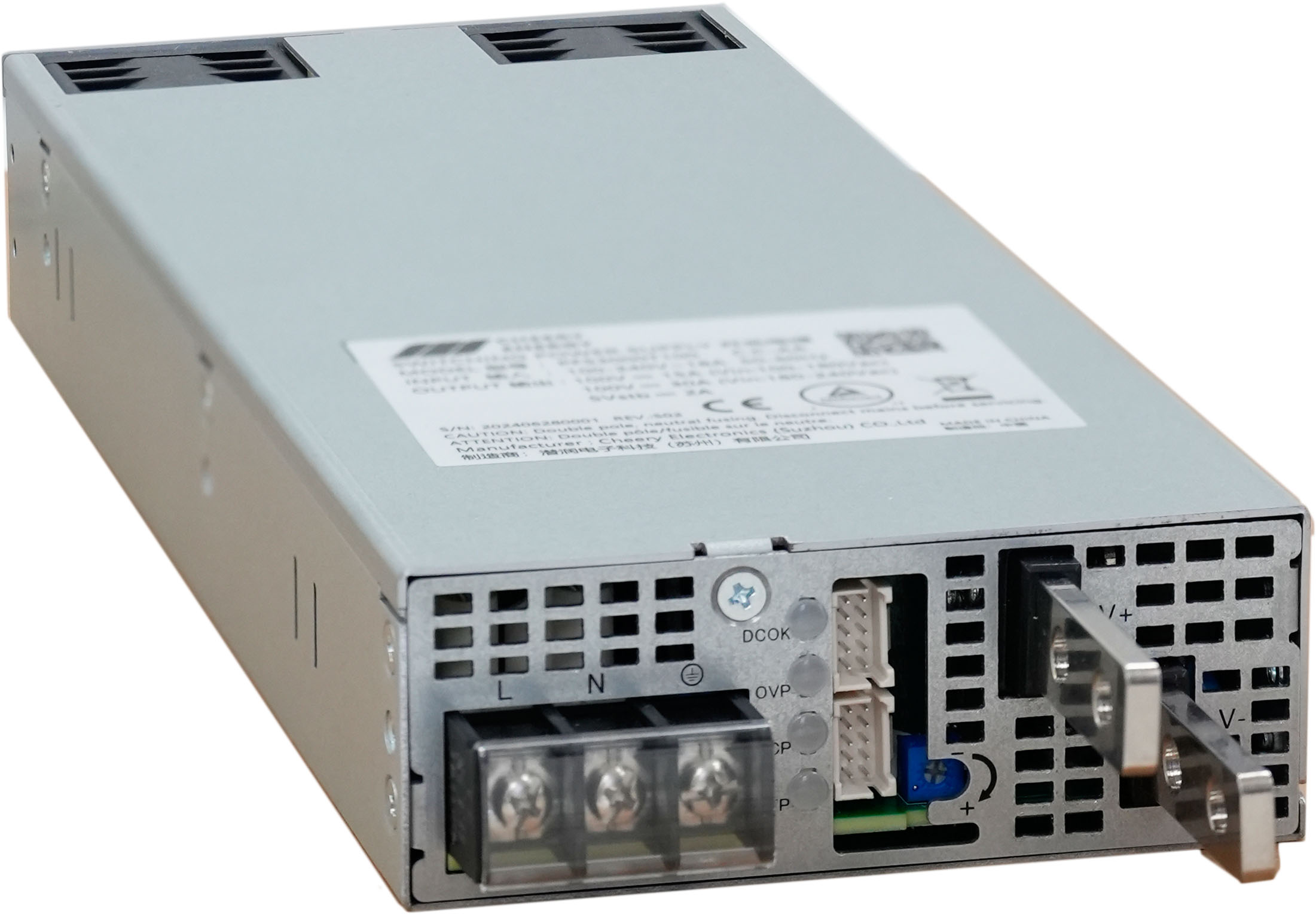

- 3kW high power AC/DC power supply unit for industrial and medical application
- 24V - 150V output voltage options
- Communication and indication features for on-site Troubleshooting
- Major region certifications
| Input Voltage Range | 90VAC - 264VAC, Single Phase |
| Input Frequency | 50Hz - 60Hz |
| Rated Output Voltage | 24V, 30V, 36V, 42V, 48V, 60V, 72V, 100V, 120V, 150V Options |
| Output Voltage Range | Ref to product datasheet for detail |
| Rated Output Power | 3000W. Derating to 1500W when input voltage is less than 180VAC |
| Output Ripple & Noise | ≤1% |
| Protections | Input Under Voltage, Output Over Current, Output Over Voltage, Output Short Circuit, Output Over Power, Over Temperature |
| Control & Communication | 5V Axu Power; DC_OK Indicator, ON/OFF Control, Current Sharing, Remote Sense, Optional PMBus or CAN Bus, LED indicators |
| Leakage Current | <100uA@Normal State；<500uA@Single Fault Mode |
| Dielectric Voltage | Primary to Secondary: 4kVAC, Comply with Medical safety requirement |
| EMC | CLASS B conducted and CLASS A radiated EMI |
| Safety | IEC62368-1, IEC60601-1, contact sales@cheeryenergy.com for detail |
