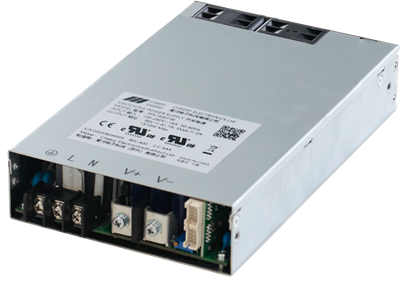

Panel mount AC/DC power supply unit for industral and medial application
Most compact 1500W PSU, no power derating in wide input voltage range
12V - 200V output voltage options covers varity of applications
Certifcation available
| Input Voltage Range | 90VAC - 264VAC, Single Phase |
| Input Frequency | 50Hz - 60Hz |
| Rated Output Voltage | 12V, 15V, 18V, 24V, 28V, 36V, 42V, 48V, 60V, 72V, 100V Options |
| Output Voltage Range | Ref to product datasheet for detail |
| Rated Output Power | 1500W |
| Output Ripple & Noise | ≤1% |
| Protections | Input Under Voltage, Output Over Current, Output Over Voltage, Output Short Circuit, Output Over Power, Over Temperature |
| Control & Communication | 5V Axu Power; DC_OK Indicator, ON/OFF Control, Current Sharing, Remote Sense, Optional PMBus or CAN Bus |
| Leakage Current | <100uA@Normal State；<500uA@Single Fault Mode |
| Dielectric Voltage | Primary to Secondary: 4kVAC, Comply with Medical safety requirement |
| EMC | CLASS B conducted and radiated EMI |
| Safety | IEC62368-1, IEC60601-1, contact sales@cheeryenergy.com for detail |
