NEW PRODUCT!

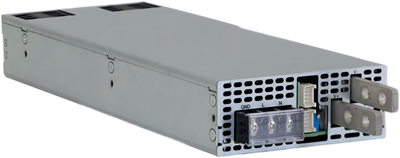

- Cost effective 1200W industrial AC/DC power supply unit
- Designed for motor loads
- Output voltage available from 48V to 200V, meeting the needs of various automated equipment
- 3800W high peak power output capability, easily meeting the demanding requirements of automation applications
- Speical design to start up with huge capacitive load
| Input Voltage Range | 90VAC - 264VAC, Single Phase |
| Input Frequency | 50Hz - 60Hz |
| Rated Output Voltage | 48V, 60V, 72V, 85V, 100V, 120V, 150V, 200V Options |
| Output Voltage Range | Ref to product datasheet for detail |
| Rated Output Power | 1200W |
| Peak Output Power | 3800W @ Vin≥220VAC |
| Output Ripple & Noise | ≤1% |
| Protections | Input Under Voltage, Output Over Current, Output Over Voltage, Output Short Circuit, Output Over Power, Over Temperature |
| Control & Communication | 5V Aux Power; DC_OK Indicator, ON/OFF Control, Current Sharing, Remote Sense, Optional PMBus or CAN Bus |
| Leakage Current | <100uA@Normal State；<500uA@Single Fault Mode |
| Dielectric Voltage | Primary to Secondary: 3kVAC |
| EMC | CLASS B conducted and CLASS A radiated EMI |
| Safety | IEC62368-1, contact sales@cheeryenergy.com for detail |
